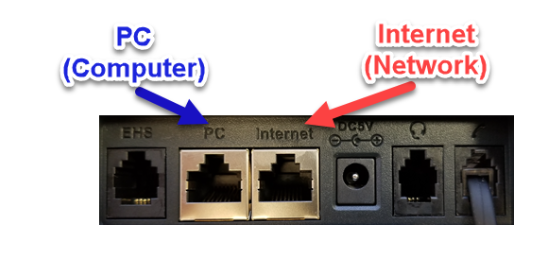

No matter the model number of Yealink phone you have received, they connect to our network the same way. On the back of the phone you will see two Ethernet ports.
The port labeled “Internet” is the port that needs to be plugged into an open Ethernet port.
If you only have one Ethernet port and your computer is plugged into it, you can plug the phone into the Ethernet port at the wall, and plug the computer into the port labeled “PC” on the phone. This will allow you to have your new phone and computer share the same Ethernet port. Best practices would be to have an Ethernet port for each, and not share one.
Once plugged into a working Ethernet port, your phone should power on and boot up. The phone does not require a power adapter as it receives power from the network switches.
